Product Details

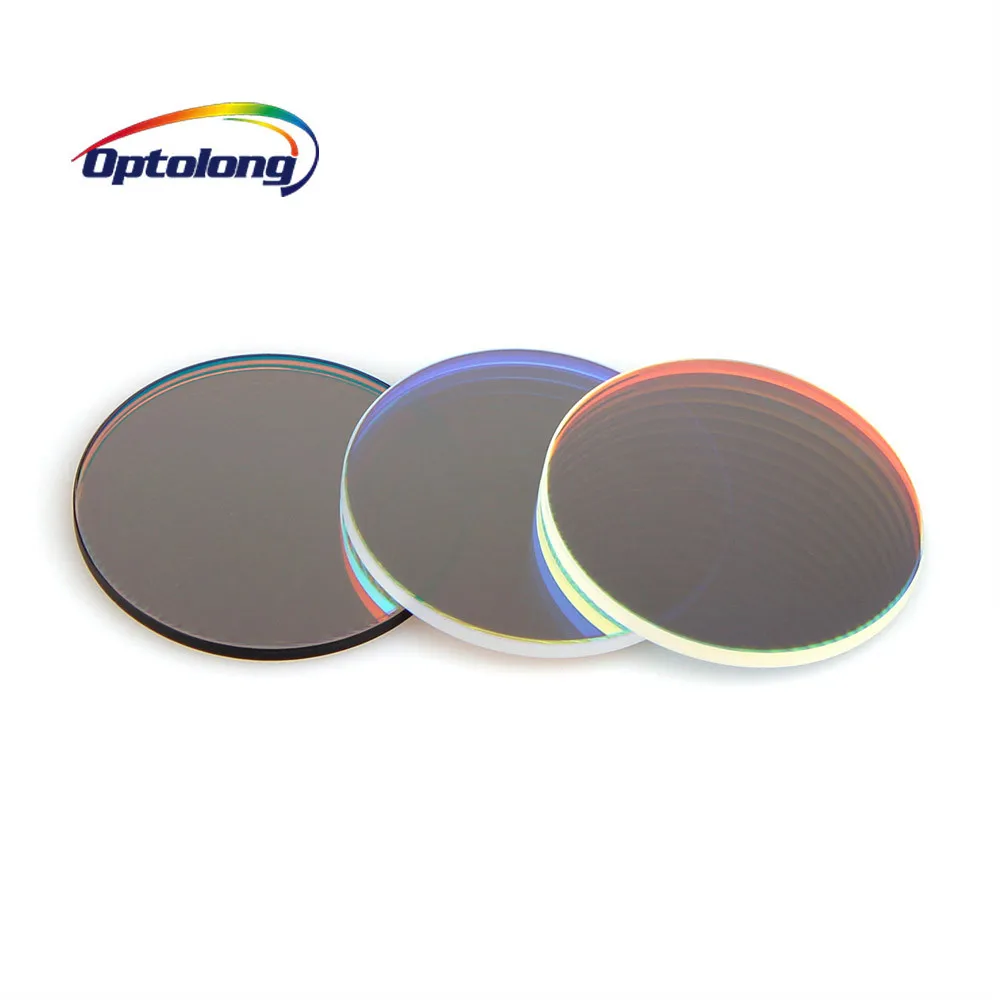

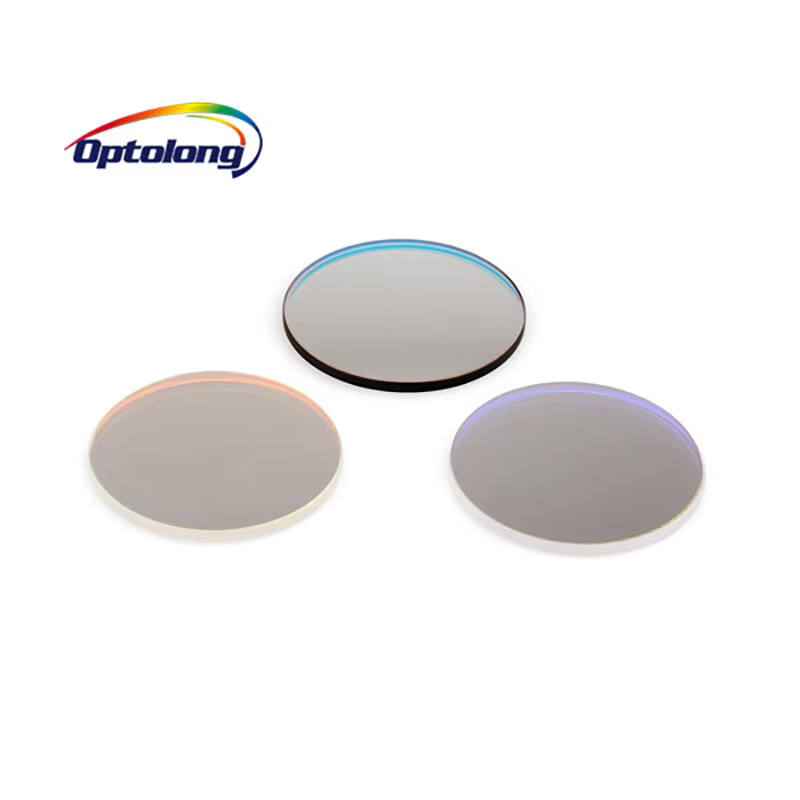

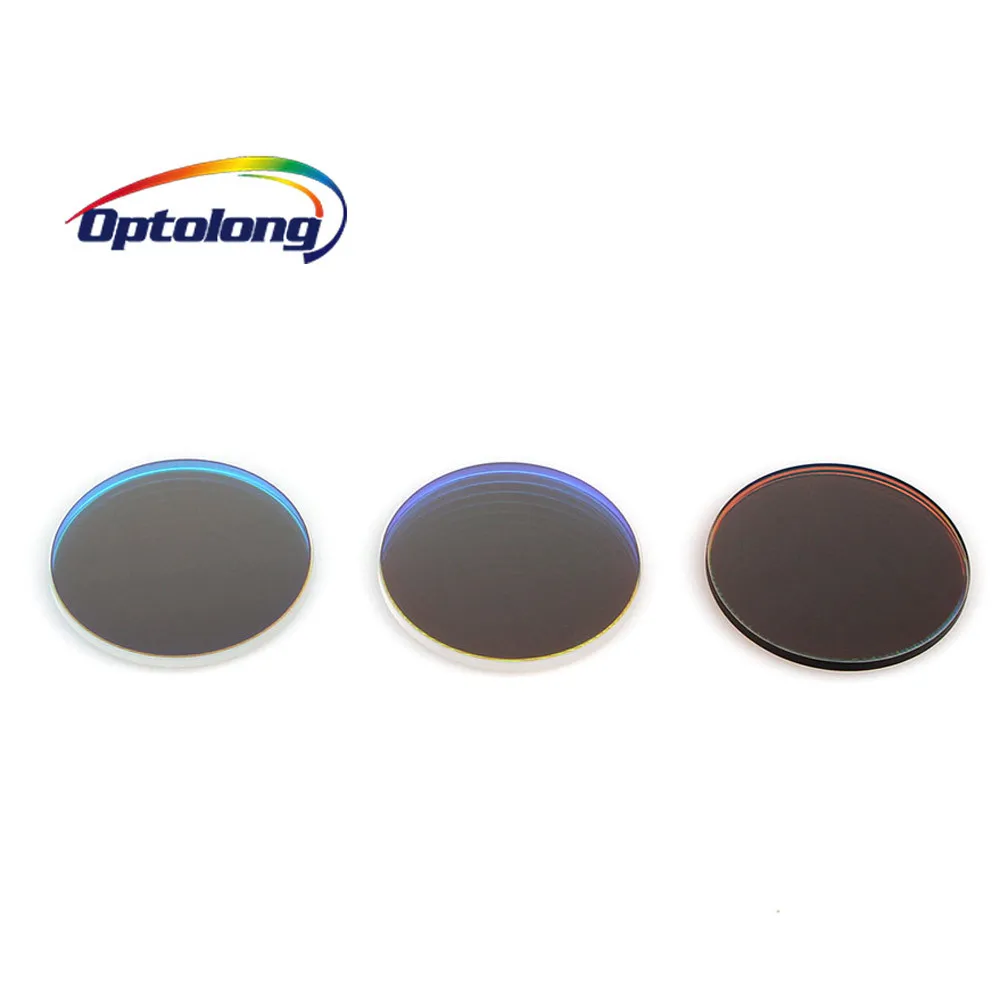

OPTOLONG Filter H-Alpha 7nm SII-CCD 6.5nm OIII-CCD 6.5nm Narrow Band Telesope Filter Kit for Deep Sky 36mm Mounted Wheels
The Optolong 36mm Mounted Filter is made with Schott glass that is multi-coated with an ion-assisted deposition technology to provide scratch resistance and stability at the central wavelength, or CWL. This filter is designed to be used in filter wheels that accept 36mm mounted filters.

The Optolong H-Alpha 7nm is an extremely narrow emission-line filter that works by allowing a 7nm bandwidth of light, centered on the 656nm wavelength, and blocking the transmission of contrast-killing light pollution wavelengths. Wavelengths responsible for natural light pollution, or skyglow, have been drastically reduced, as is artificial light pollution caused by high and low pressure sodium vapor and mercury vapor lights. The result is a high contrast image that reveals the H-alpha line in all its glory.

The Optolong Sulfur II 6.5nm Extra Narrowband Filter transmits a 6.5nm bandwidth of light that is centered at 672nm and drastically reduces other transmissions, including wavelengths of light responsible for light pollution (both artificial and natural). Like all Optolong filters designated as CCDs, this SII filter also blocks infrared wavelengths from 700nm to 1100nm so you don't need a separate IR-cut filter.

The Optolong Oxygen III 6.5nm Extra Narrowband Filter transmits a 6.5nm bandwidth of light centered at 500nm and drastically reduces other transmissions, including wavelengths of light responsible for light pollution (both artificial and natural). Like all Optolong filters designated as CCDs, this OIII also blocks infrared wavelengths from 700nm to 1100nm so you don't need a separate IR-Cut filter.

The Optolong 6.5nm SII filter can be used in conjunction with H-Alpha and OIII filters for false color emission line images like the Hubble Space Telescope.

Note: This h-alpha filter is NOT for use on the Sun. doing so could cause irreparable eye damage or blindness. Don't even think about it!

Quality Filter Materials:

Schott B260 substrate material from Germany, 2.0mm thick

Multiple layers of anti-reflective non-cementing coatings applied via electron-beam gun evaporation with Ion-assisted deposition

Filter Production Processes and Parameters:

Filter substrate is fine-optically polished to 1/4 wave and <30 parallelism across both surfaces

Surface quality, according to MIL-O-13830, is 60/40

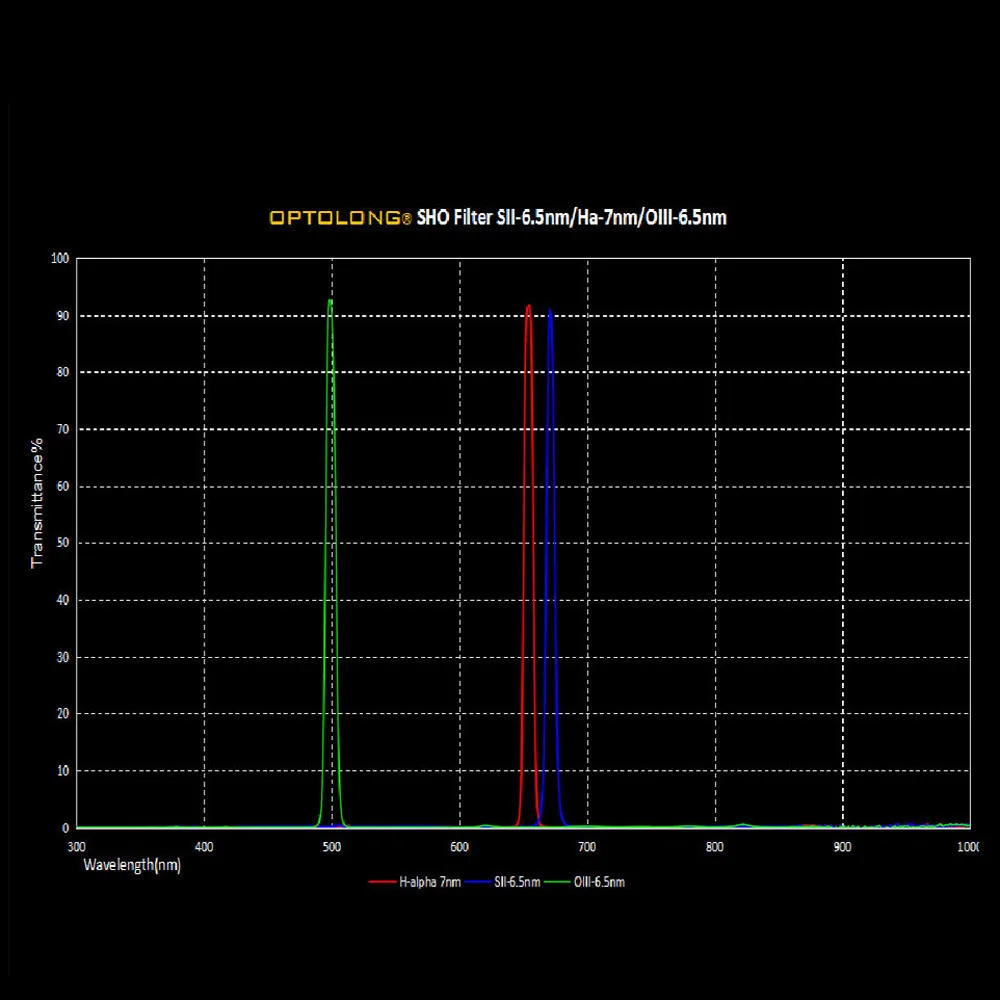

80% transmission on OIII line 500nm (on SII line 672nm; on H-alpha 656nm)

Infrared wavelength of 700-1100nm is cut off

0.1% transmission Hg at 435nm and 578nm

0.1% transmission Na at 589nm

High-value transmission of pass-band and optical density of off-band is ensured by Optolong's planetary rotation system, a homogeneous and precise coating procedure

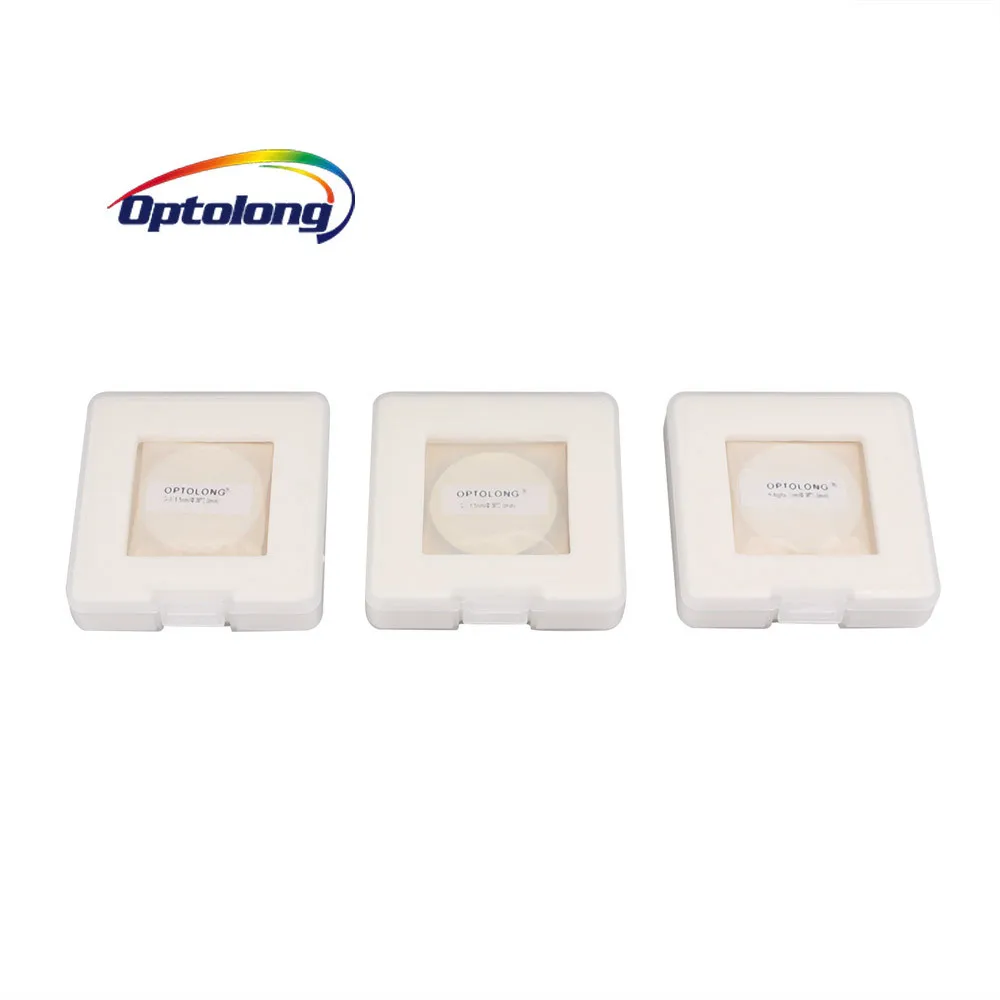

Each filter comes with a plastic case with high pressure EVA case liner

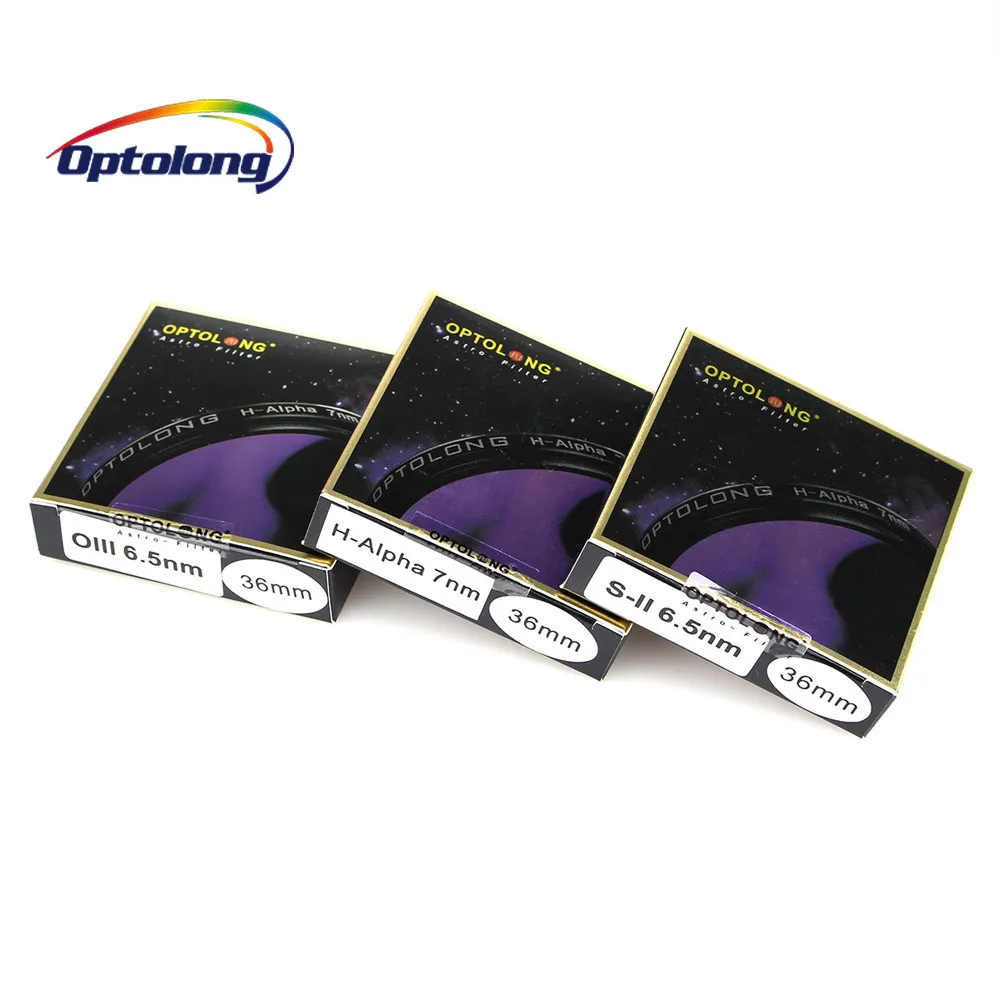

Package:

OPTOLONG 36mm H-Alpha 7nm Filte

OPTOLONG 36mm SII 6.5nm Filter

OPTOLONG 36mm OIII 6.5nm Filter

Three Solid Plastic Cases

Photo show

IMPROVED SHO6.5nm Filters Performance

Ⅰ. NGC7000- The North America Nebula  © Francesco Battistella-AstroAtlas

Technical Information:
Telescope: AIRY APO 130T Primalucelab
Mount: Paramount MyT - Software Bisque
Camera: QHYCCD QHY9
Filter: Optolong H-a 7nm, OIII 6.5nm
Frames: H-a: 49x900s -- OIII: 36x900s
Total Integration: 21,25 Hours
Software: SGP – TheSkyX – PHD2 – DSS – PixInsight – CS6
Location: Noventa di Piave (Venice) 4 meter above sea level – ITALY
Environment Temperature: About 23°C
Relative Humidity: 89%
Date: 26.06.20 - 27.06.20 - 04.07.20 - 25.08.20 - 27.08.20
NOTE: High Humidity and Sky Bortle: 5

Ⅱ. The Pelican Nebula  © Astrodoc Ron Brecher

Tekkies:
Sky-Watcher Esprit 150 f/7 refractor, QHY 16200-A camera, Optolong Ha, O3 and S2 filters, Paramount MX. Acquisition with TheSkyX unguided. Focus with Optec DirectSync motor and controller. Automation with CCDCommander. Equipment control with PrimaLuce Labs Eagle 3 Pro computer. All pre-processing and processing in PixInsight. Acquired from my SkyShed in Guelph. No Moon, average to above average transparency and average seeing. Data acquired September 3-21, 2020.
11x10m S2, 19x10m Ha, and 9x10m O3 (Total = 6hr00m)
Image scale 1.15 arcsec per pixel
Data Reduction and Cleanup
The WeightedBatchPreProcessing script was used to perform calibration, cosmetic correction, registration and integration of all frames.
Chrominance

III. NGC 7000 The North America and IC 5070 The Pelican Nebulae © José Jiménez

NGC 7000 The North America and IC 5070 The Pelican Nebulae
La Jonquera - Girona
SHO
ZWO ASI1600MM PRO & Askar FRA400mm
8 x 900" Optolong  H-Alpha
8 x 900" Optolong SII
8 x 900" Optolong OIII
Sky Watcher AZ-EQ6 PRO mount
Guide camera ZWO ASI 120MM
RGB
ZWO ASI1183MC PRO & WO SpaceCat51
8 x 900" Optolong  L-eXtreme
Sky Watcher AZ GTI Mount
Guide camera ZWO ASI 462MC
Calibrated, stacked and processed with Pixinsight, and final tweaks with Lightroom

Ⅳ. Bubble Nebula | NGC 7635© Luca Fornaciari Astrophotography

Bubble Nebula | NGC 7635 | Narrowband shots in Hubble Palette SHO (Sii:Ha:Oiii)
Tecnosky RC8’’ f/8 Carbon Deluxe on AZEQ6-GT | Qhyccd 163m | Optolong Astronomy Filter Narrowband filter
Ha: 76x300’’ | Oiii: 64x300’’ | Sii: 85x300’’
Elaboration with Pixinsight and Adobe Photoshop 2020.
Website: www.lucafornaciarifotografia.com
Frames captured from Carl Sagan Observatory in Maranello (Italy).
Bortle 5 / SQM

V. Fireworks in Monoceros© Terry Hancock

Technical Details
Captured and processed by: Terry Hancock
Location: GrandMesaObservatory.com Purdy Mesa, Colorado
November 1, 2, 3, 4th 2019
HA 430 min 43 x 600 sec
OIII 340 min 34 x 600 sec
SII 300 min 30 x 600 sec
Narrowband Filters by Optolong
Camera: QHY16200A
Gain 0, Offset 130 Calibrated with Dark and Bias Frames no Flat.
Optics: William Optics Redcat 51 APO @ F4.9
EQ Mount: Paramount ME
Image Acquisition software Maxim DL6
Pre Processing in Pixinsight
Post Processed in Photoshop CC
Starnet (star removal)

The Rosette Nebula (also known as Caldwell 49)This active star forming nebula lies in the Monoceros Constellation (the Unicorn) only 5,200 light-years distant. The dense cloud of hydrogen has been condensing to form new stars and is thought to be very similar to the environment that gave birth to our own Solar System. As the new stars ignite they blow off their shrouds and irradiate thier surroundings and cause the hydrogen to glow from the ionizing radiation. Like dust being blown by the wind, these newborns push the hydrogen and dust away where it collapses under gravity to accelerate the formation of yet more stars, excavating the inner region of the nebula over time.

Ⅵ. IC1795 & NGC896-The Fish Head Nebula © Francesco Battistella-AstroAtlas

Technical Information:
Telescope: AIRY APO 130T Primalucelab
Mount: Paramount MyT - Software Bisque
Camera: QHYCCD QHY9
Filter: Optolong H-a 7nm, OIII 6.5nm, SII 6.5nm
Frames: H-a: 40x900s -- OIII: 46x900s -- SII: 36x900s
Total Integration: 30.5 Hours
Software: SGP – TheSkyX – PHD2 – DSS – PixInsight – CS6
Location:  AstroAtlas Observatory - Noventa di Piave (Venice) 4 meter above sea level – ITALY
Environment Temperature: About 23°C
Relative Humidity: 90%
Date: 11.09.20 - 12.09.20 - 13.09.20 - 14.09.20 - 15.09.20 - 17.09.20

Ⅶ. NGC6888-The Crescent Nebula © Francesco Battistella-AstroAtlas

Technical Information:
Telescope: AIRY APO 130T PrimaLuceLab
Mount: Paramount MyT
Camera: QHYCCD QHY9
Filter: Optolong H-a 7nm, OIII 6.5nm, SII 6.5nm
Frames: H-a: 40x900s -- OIII: 40x900s -- SII:32x900s
Total Integration: 28 Hours
Software: SGP – TheSkyX – PHD2 – DSS -PixInsight – CS6
Location: Noventa di Piave (Venice) 4 meter above sea level – ITALY
Environment Temperature: About 19°C
Relative Humidity: 89%
Date: 24.03.20 - 06.04.20 - 09.04.20 - 10.04.20 - 20.05.20 - 26.05.20 - 27.05.20 - 11.06.20 - 12.06.20
NOTE: Bortle Sky 5
