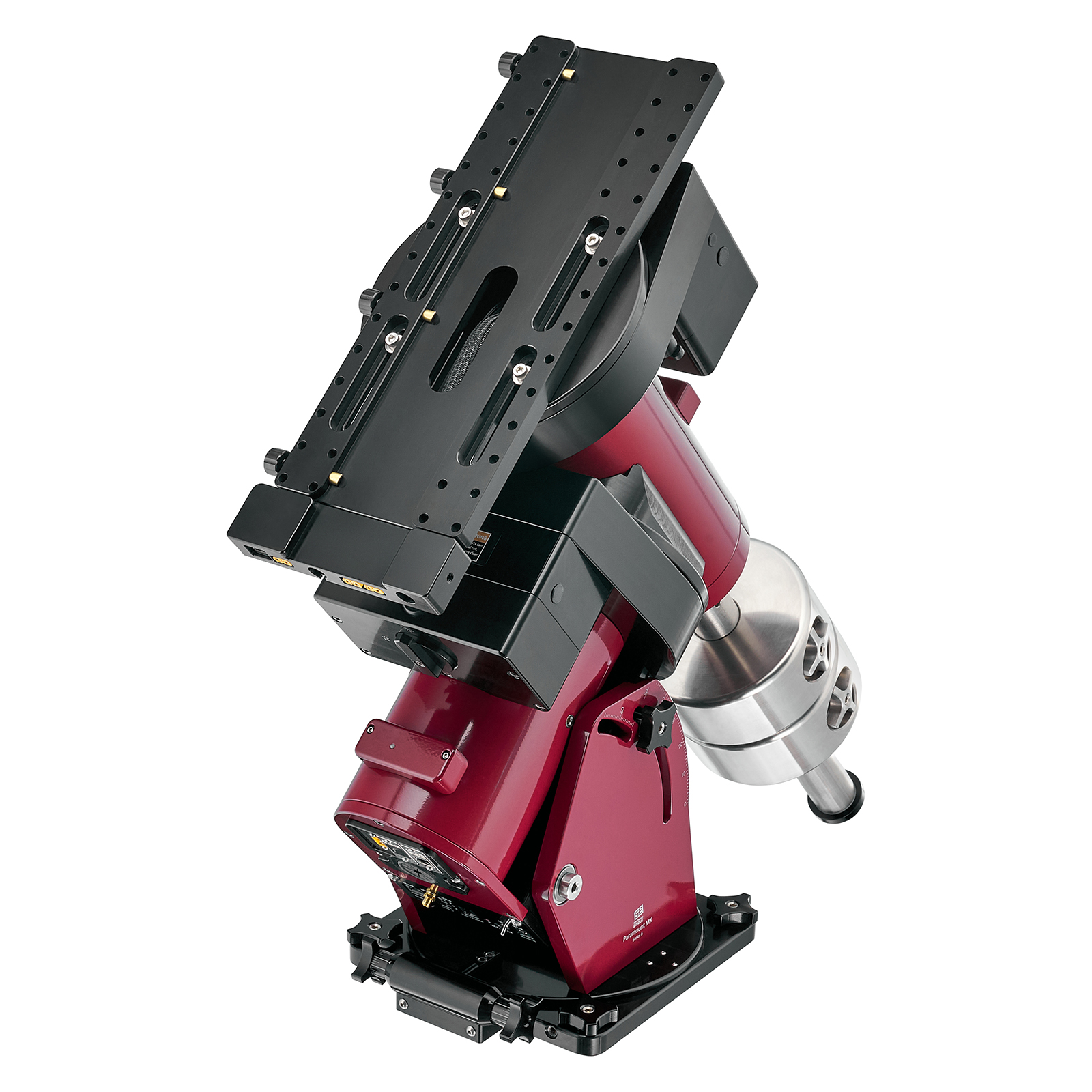

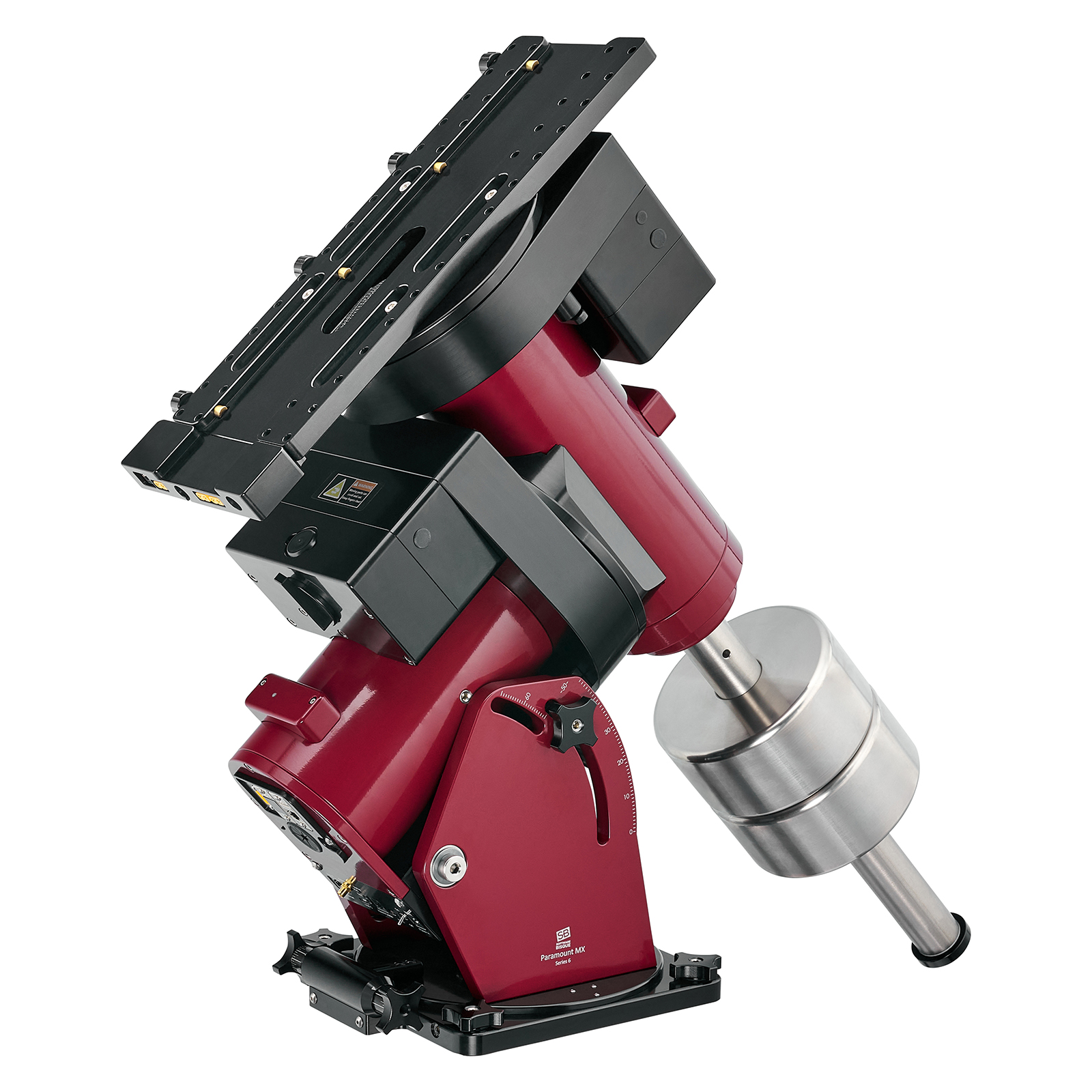

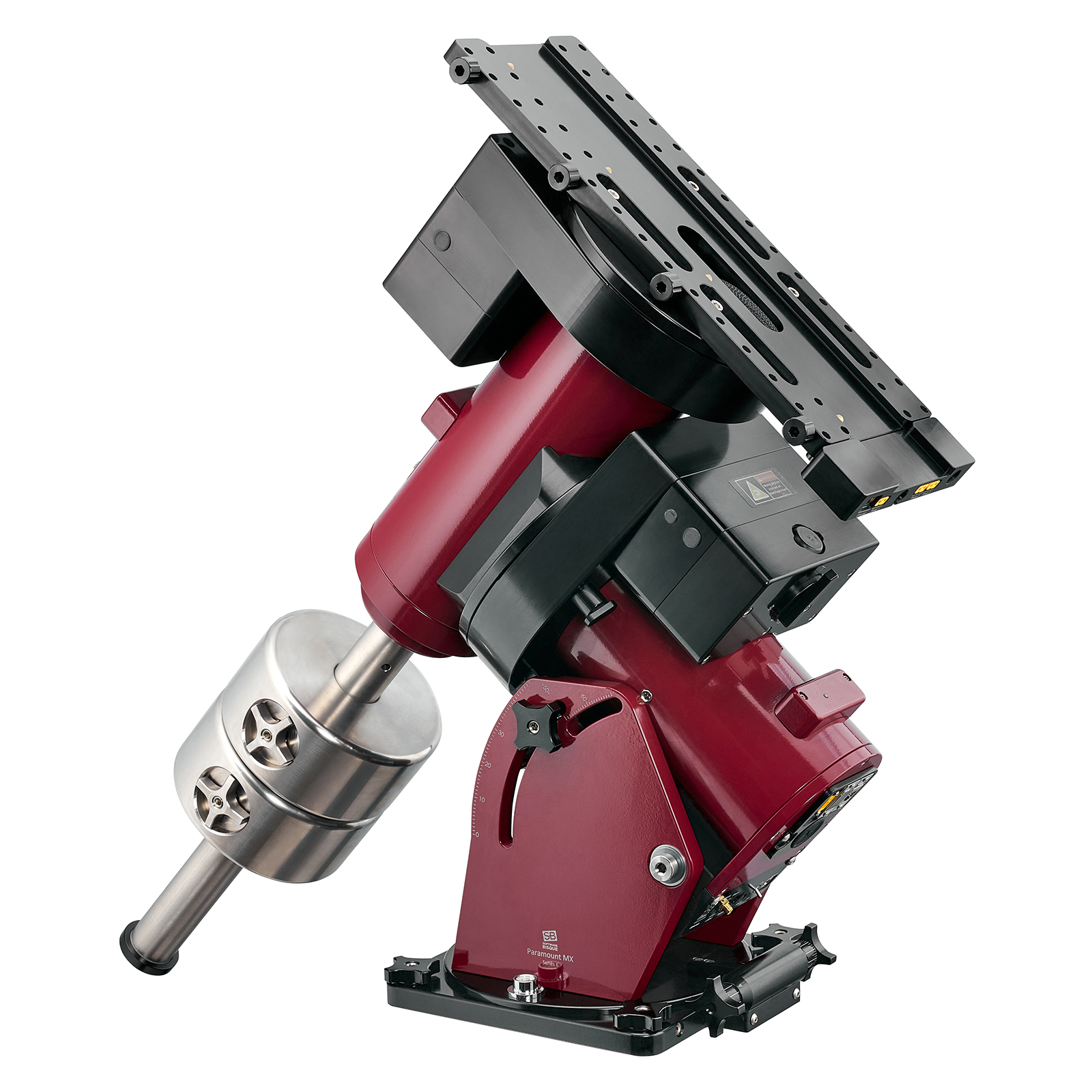

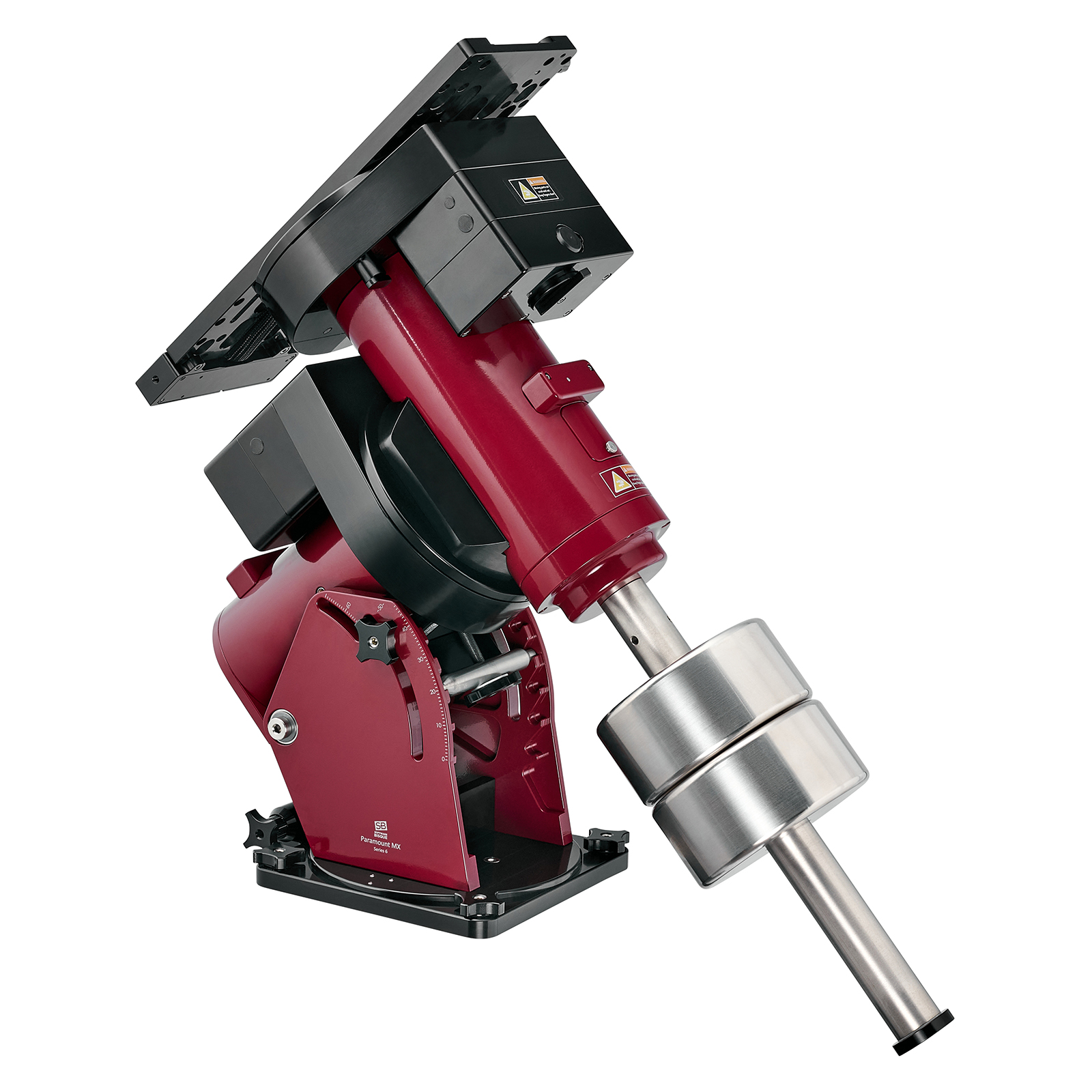

Software Bisque Paramount MX Series 6 Equatorial Mount with Motor-based encoders

Software Bisque Paramount MX Series 6 Equatorial Mount with Motor-based encoders

By far, the coolest feature of our new Series 6 mounts is that they’re Paramounts.

While its new features and refinements are important, they pale in comparison to the highly desirable results that Paramounts are already known to deliver — even without absolute encoders: all-sky pointing accuracy at or below 30 arcseconds RMS and unguided exposures as long as 20 minutes.¹

That extraordinary performance would be impossible without Paramount’s integrated software. TPoint™ and ProTrack™ dynamically update the mount’s position across both axes to correct system-wide errors caused by tube flexure, atmospheric refraction, polar misalignment, miscentered encoders and/or worm gears, and more.

While the optional on-axis absolute encoders eliminate periodic error, TPoint™ telescope modeling with ProTrack™ is required to correct all the errors mentioned above.

Paramounts routinely deliver unsurpassed pointing and tracking accuracy — with or without on-axis absolute encoders.

Paramounts are also known for their reliability and straightforward operation. They just go, night after night, as it should be!

Order yours today and enjoy owning a Paramount Series 6, the world’s finest robotic German equatorial mount.

Specifications:

• 125 lb. (56 kg) instrument capacity; 250 lb. (113 kg) maximum payload capacity (instruments + counterweights)
• All sky pointing accuracies at or below 30 arcseconds RMS (see Software Specifications below for details)
• Unibody mount design weighs 54 lb. (24 kg) without counterweights or counterweight shaft
• Maximum seven (7) arcseconds peak-to-peak periodic error before correction
• After a one-time training, periodic error is 1 arcsecond, peak-to-peak or less
• Optional 26-bit Renishaw encoders eliminate periodic error and the need for homing; operates in temps as low as –40° C
• If you skip encoders now and later decide you want them, they can be retrofitted on Series 6 Paramounts
• There’s been confusion about what encoders contribute to the Paramount’s performance; see FAQ below regarding whether encoders are right for you
• The TCS, motor cables, power cables and electronic cabling are housed inside the mount to prevent snags
• Ample room to run your custom through the mount cables
• Advanced MKS 6000 telescope control system lets you connect via USB-C, Ethernet, and Wi-Fi  (MKS 6000 Upgrade Kits will be available for earlier models)

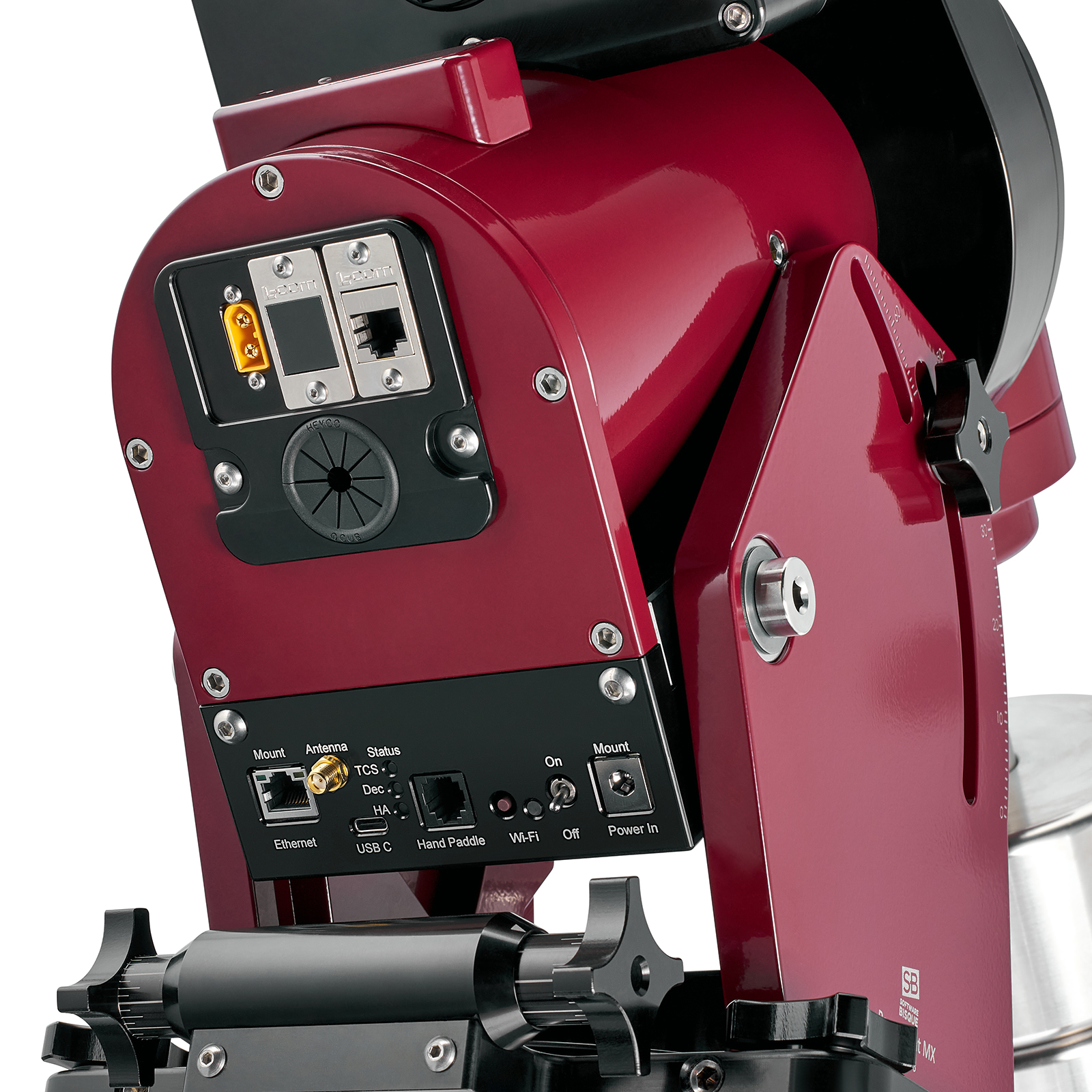

• Three high-power XT60 ports on the Instrument Panel
• The drop-in dovetail on the Versa-Plate™ (included) accepts most telescopes and makes mounting them a breeze
• 48V DC power supply and PC-to-mount USB and Ethernet cables included
• Two 20 lb. (9 kg) counterweights included which can balance 40-50 lb. (18-22 kg). You may need more for heavier payloads.
• Belt-driven gears with spring loaded worm gears produce virtually zero backlash
• Durable and fade-resistant red powder coating and black anodized finish; components are aluminum
• Clutch-free design helps maintain its TPoint™ assisted pointing accuracy
• AutoHome™ homing capability ensures the mount always knows its orientation (after performing an initializing process called “homing” which usually takes a minute or less)
• Calibrated azimuth and elevation polar alignment adjustments speed polar alignment.

Included Items

The table below is the Paramount MX packing list.:

Additional information

Weight：54 lbs

Dimensions：20 × 19 × 10 in

Encoders: Motor-based encoders

Paramount MX Documentation

• Paramount Series 6 Getting Started Guide
• Paramount Series 6 User Guide (GEM Models)

Technical Documents

• Paramount Software Suite Quick Start Guide
• Paramount User Guide (GEM Models)
• Paramount ME II/MX/MYT Worm Block Replacement Instructions
• Paramount GEM MKS 5000 Replacement Instructions
• Paramount GEM Homing Sensor Cable Troubleshooting and Installation Instructions
• Paramount Hand Paddle Electronics Replacement Instructions
• Paramount ME II/MX/MYT Worm Block Replacement Instructions
• Paramount MYT/MX PoleMaster Adaptor Installation and Use
• Paramount Portable Power using the EGO Battery
