ZWO ASI585MM Air All-In-One Monochrome Smart Camera

Main sensor

Guide sensor

Start Your Astrophotography Journey with Great Convenience

The ASI585MC/MM Air integrates imaging, guiding, and smart control, featuring ZWO’s self-developed “Dual Sensor + ASIAir” integration technology. Say goodbye to complex setups and enjoy a seamless, hassle-free astrophotography experience.

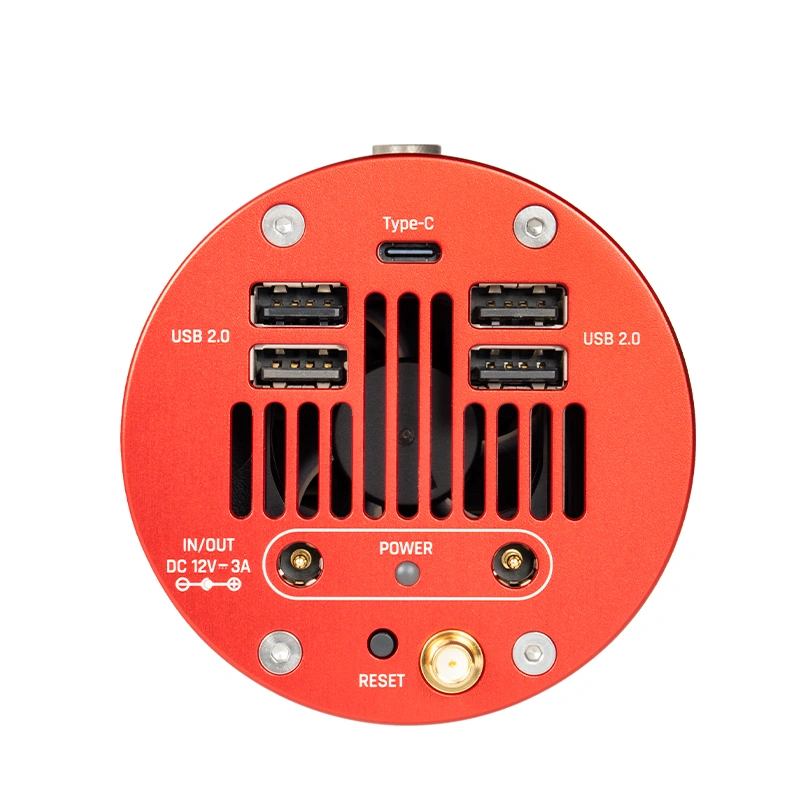

Effortlessly Connect Mutiple Devices

4x USB 2.0, 2x DC12V 10A, 1x USB Type-C
USB 2.0 ports for your focuser, filter wheel, and mount; DC 12V 10A input/output ports for reliable power; USB Type-C port for fast file transfers—you can focus on capturing stunning images without worrying about connectivity issues.

Ample Storage, Explore Without Limits

With 256GB eMMC storage, the ASI585MC/MM Air allows you to capture multiple targets with ease. Rigorously tested with over 300 benchmarks, it ensures system stability. Plus, the USB 2.0 ports support up to 1TB external storage, giving you plenty of room for all your astrophotography needs.

Starvis 2 4K Sensor

Image Sensor Technology Beyond the Human Eye’s Sensitivity
Equipped with the upgraded STARVIS 2 image sensor, supporting a higher dynamic range.
With this technology, the sensitivity and signal-to-noise ratio of the ASI585MC/MM Air are greatly enhanced, delivering exceptional image quality.

No Amp Glow

The ASI585MC/MM Air exhibits zero amp glow, which ensures extremely clean dark-field images. No matter how long the exposure and how the gain value, you can easily capture high-quality astrophotographs.

Note: It is implemented directly at the hardware level, it does not require software control.

Dual-Band Wi-Fi for Stable Signal

Experience unparalleled connectivity with our enhanced external dual-band antenna, supporting both 2.4G and 5G frequencies and offering stable and smooth usage within 20 meters.

Cross-Platform Device Control

Except from ASIAIR App, ASI2600MC Air can also wirelessly connect to ZWO’s proprietary PC control software, ASIStudio, and also other 3rd-party PC software. 3rd-party software can be controlled through ASCOM extended protocol Alpaca (requires ASCOM Platform version V6.6 or higher).

(Note: 2.4G has a longer transmission distance but slightly slower speed compared to 5G. The 20-meter range is based on multiple tests of the 2.4G frequency in open areas.)

Get Fully Control of Your Entire Rig at Your Fingertips

Powered by ZWO’s patented technologies, featuring smartphone connectivity and OTA upgrades for a seamless astrophotography experience.
Connect, capture, and upgrade effortlessly — astrophotography made smart and fun.

Instant Post-Processing and Sharing

Live stack is supported during your imaging session. You may also make adjustments to brightness, contrast and others on the final image. Instantly share your masterpieces on social media platforms and astronomy communities, making your work stand out.

Efficient Cooling, Superior Image Quality

The two-stage TEC cooling system lowers the CMOS sensor temperature by 30°C–35°C below ambient, effectively reducing dark current generation.
Even during long exposures of several hundred seconds, noise remains minimal.
Note: The lower the ambient temperature, the smaller the cooling differential.
*Based on tests at 30°C ambient temperature. Cooling efficiency decreases as ambient temperature drops, and operation below –20°C is not recommended.

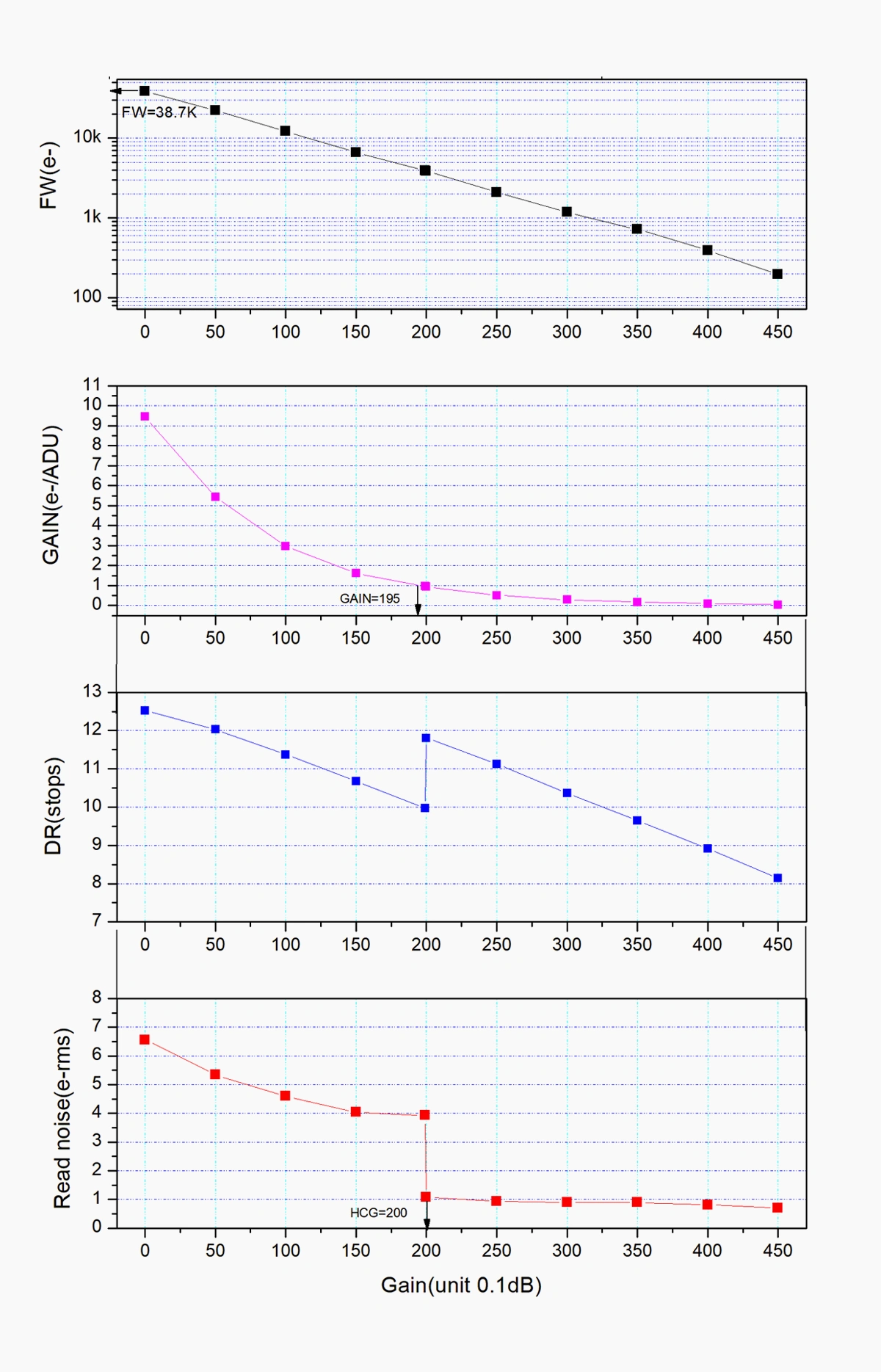

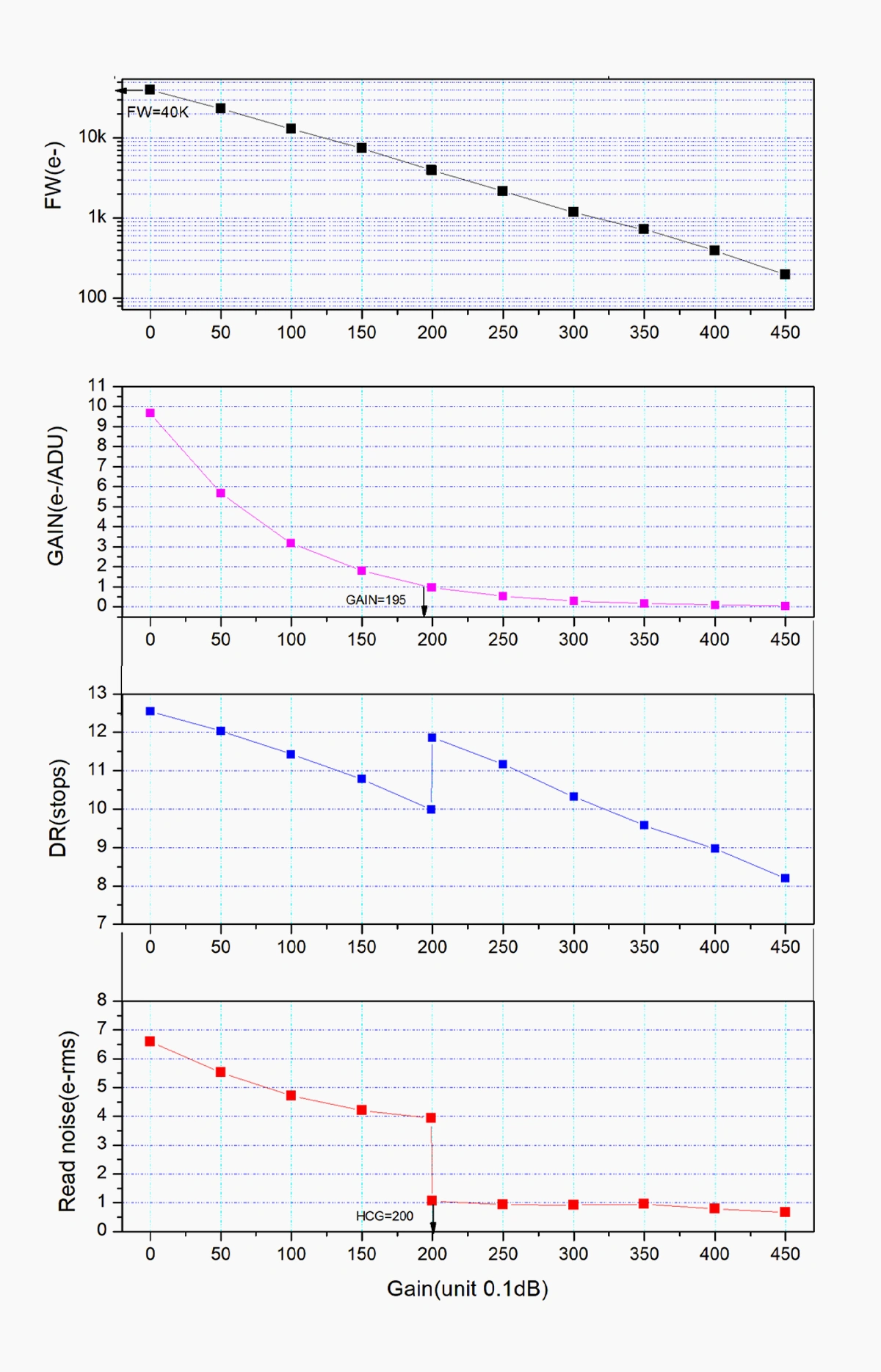

Low Read Noise, High Dynamic Range

The camera has a built-in HCG mode, which can effectively reduce readoutnoise at high gain and allow the camera to maintain the same high dynamicrange as it does at low gain. When the gain is 200, the HCG mode isautomatically turned on and the Dynamic range reaches a level close to 12bit.The readout noise is as low as 0.7e.

ASI585MC Air

ASI585MM Air

QE

After “ZWO Laboratory” calculation, the peak quantum efficiency of ASI585MC Air is 88%. The peak quantum efficiency of ASI585MM Air is 91%
*Data source: This data is from ZWO Laboratory. The actual quantum efficiency peak value is subject to real-world data.

ASI585MC Air

ASI585MM Air

Dark Current

Power Consumption

Built-in Filters

The ASI585MC Air camera features a UV-IR Cut filter in front of the sensor, serving as a protective window that blocks infrared light.

The ASI585MM Air camera is equipped with an AR (Anti-Reflective) coated protective window, which enhances light transmission and minimizes reflections.

Frame Rate

Camera Specification

Image Circle Compatibility Reference

Please refer to the diagram below to understand how ASI585MC/MM Air cameras match with various telescope image circles.

ZWO Air cameras are compatible with telescopes that support APS-C or larger image formats.
Note: When using a telescope with an APS-C image circle, you may notice slight distortion in the guide star. If you’re looking for more accurate and stable guiding performance, we recommend using a telescope with a full-frame or larger image circle.

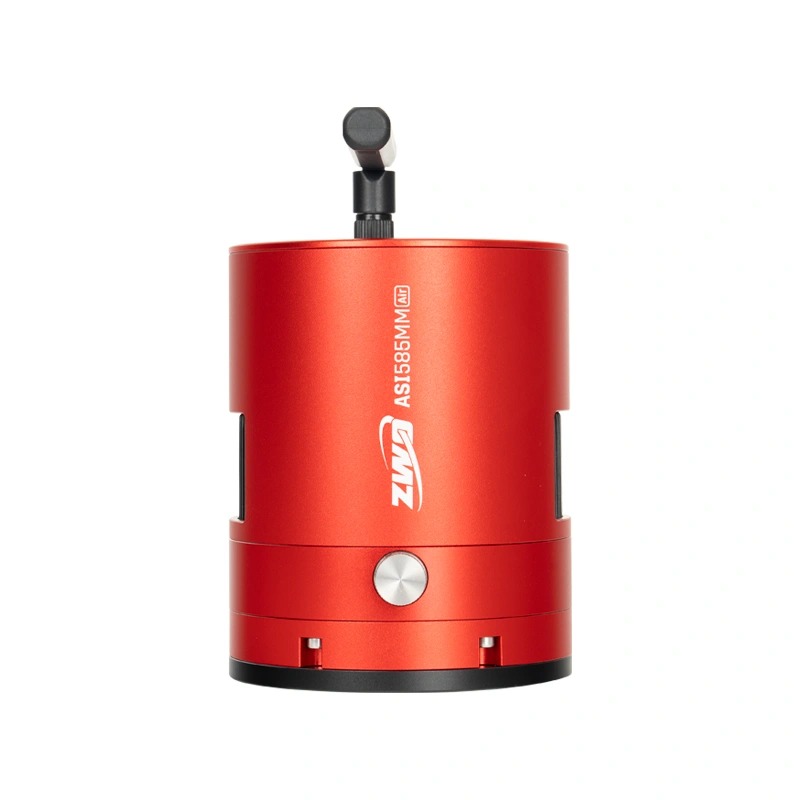

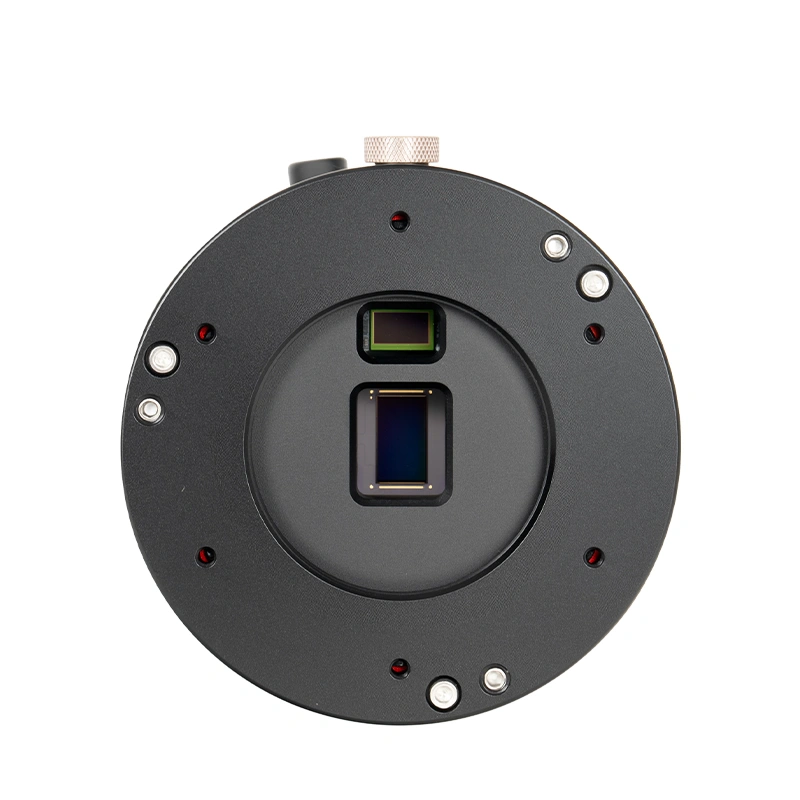

Camera Details

Connecting Diagram

Key Specification

Mechanical Diagram

What’s in the box?
